Distribution Transformer

Introducing our high-performance Distribution Transformer, meticulously designed and manufactured to meet the most demanding industrial and commercial applications. Whether you choose our Dry Type Distribution Transformer for its superior safety and low maintenance or our Oil Cooled Distribution Transformer for its unmatched efficiency and reliability, you are assured of the perfect solution to your energy distribution needs. With over 8.0 years of expertise as a trusted service provider, manufacturer, supplier, and trader, we bring you optimum-quality transformers that deliver incomparable performance. Our transformers are engineered to ensure maximum energy efficiency, robust durability, reduced energy losses, low noise operation, and exceptional load regulation. Available for purchase and personalisation to match your exact specifications, our distribution transformers represent the finest engineering standards. Order now and benefit from unparalleled supply capability across All India to experience the most reliable and cost-efficient energy solutions for your business. Trust our products to provide the ideal combination of modern technology and durability, making them the perfect choice for all your distribution requirements.

Dry Type Distribution Transformer

MOQ : 1 Unit

  • Capacity
  • 1000 kVA
  • Coil Material
  • Other , Copper
  • Coil Number
  • Other, Double wound
  • Coil Structure
  • Toroidal
  • Cooling Type
  • AN/AF (Air Natural/Air Forced)
  • Dimension (L*W*H)
  • 1700 x 1100 x 1600 mm
  • Efficiency
  • 98%
  • Frequency (MHz)
  • 50 Hz
  • High Voltage
  • 33 kV
  • Load Loss
  • 6.8 kW
  • Low Voltage
  • 415 V
  • Material
  • Copper (Cu)
  • Operating Temperature
  • -25C to +40C
  • Output
  • 415 V
  • Phase
  • Other, 3 Phase
  • Power Scope
  • 1000 kVA
  • Product Type
  • Other, Dry Type Distribution Transformer
  • Rated Voltage
  • 33 kV/415 V
  • Standard
  • IEC 60076
  • Usage
  • Power distribution
  • Voltage Booster Type
  • Other, No booster
  • Weight
  • Approx. 1800 kg

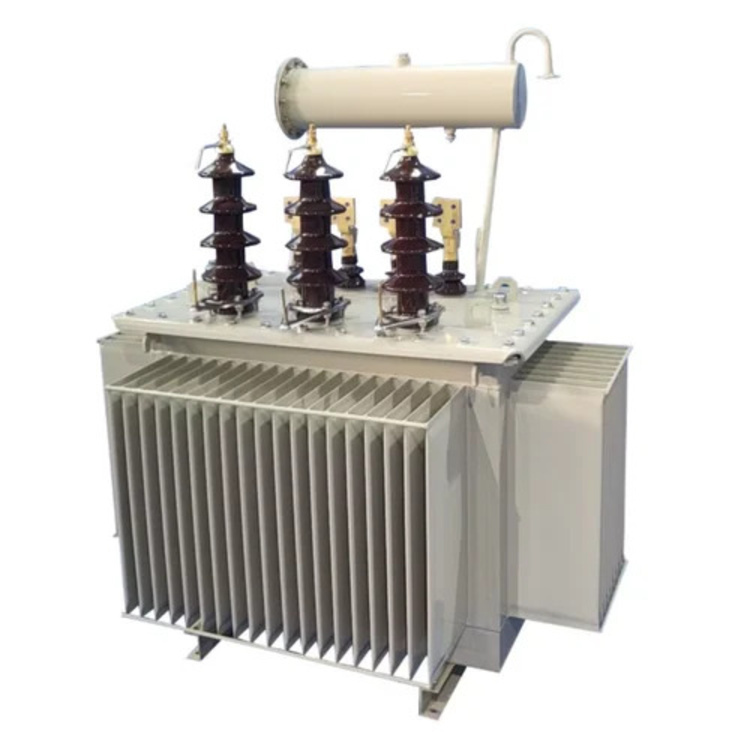

Oil Cooled Distribution Transformer

MOQ : 1 Unit

  • Capacity
  • 1000 kVA
  • Cooling Type
  • ONAN
  • Phase
  • Other, 3 Phase
  • Product Type
  • Other, Distribution Transformer
  • Rated Voltage
  • 11kV & 33kV
  • Standard
  • IS 1180
